彈性體采用S型機構,多層灌膠,密封可靠;上下內螺紋連接,結構簡單;價格便宜;高精度、高穩定性,適用于電子水泥包裝秤、水泥配料秤、吊鉤秤、料斗秤等電子衡器及測力場合。
The S-shaped structure is used for elastomer . It has reliable multi-layers pouring pastern sealing . The upper and nether is connected by inner screw and it has simple structure and cheap price;high wighing accuracy and high stability . It is suitable for electronic sacles like cenment packing scales and cenment mixing scales and hopper sacles etc.
量程范圍(Scaling Range [t]):0.05,0.07,0.1,0.15,0.2,0.25,0.5,0.75,1,1.5,2,2.5,3,5,7.5,10,20
準確度等級(Accuracy Degree):0.02、0.03
材質(Material): 合金結構鋼/不銹鋼
技術指標(Technical Specification):
技術參數 Technical parameter
|
單位 Unit
|
技術指標 Specification
|
輸出靈敏系數Sensitivity
|
mV/V
|
2±0.006;3±0.006
|
非線性Nonlinearly
|
% F.S
|
0.02、0.03
|
重復性Repeatability
|
% F.S
|
0.01
|
滯后Hysteresis
|
% F.S
|
0.02、0.03
|
蠕變Creep(30min)
|
% F.S
|
0.02
|
零點輸出Zero balance
|
% F.S
|
±1
|
零點溫漂Temp. Effect on zero signal
|
% F.S /10℃
|
0.02
|
靈敏系數溫漂Temp. Effect on sensitivity
|
% F.S /10℃
|
0.02
|
溫度補償范圍Temp. Compensation range
|
℃
|
-10 ~ +55
|
安全溫度范圍Safe temp. range
|
℃
|
-20 ~ +70
|
輸出阻抗Output resistance
|
Ω
|
350±3
|
輸入阻抗Input resistance
|
Ω
|
385±10
|
絕緣電阻Insulation resistance
|
MΩ
|
>5000
|
推薦激勵電壓Nominal excitation voltage
|
V DC/AC
|
10
|
最大激勵電壓Max. Excitation voltage
|
V DC/AC
|
16
|
安全過載Safe load limit
|
% F.S
|
150
|
極限過載Breaking load
|
% F.S
|
300
|
電纜長度Cable length
|
m(四芯屏蔽電纜)
|
6(也可按用戶要求加工)
|
電纜接線標識(Cable Color):
紅——輸入(+);黑/蘭——輸入(-);綠——輸出(+);白——輸出(-)。
Red—Input(+);Black/Blue—Input(-);Green—Output(+);White—Output(-)
其他說明(Note):
可按用戶要求量程和外形尺寸供貨。
We can supply according to scaling range and shape dimension required by users.

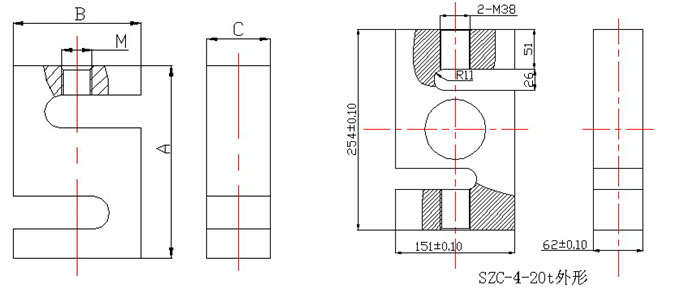

外形安裝尺寸(Mounting Dimension):
尺寸
量程
|
A
|
B
|
C
|
M
|
50/100/150 Kg
|
76.2
3.00
|
50.8
|
19
|
M12*1.75
|
200/250 lb
|
3.00
|
2.00
|
0.75
|
3/8-24UNF-2B
|
250/500/750 Kg
|
76.2
|
50.8
|
19
|
M12*1.75
|
500/750/1K/1.5 Klb
|
3.00
|
2.00
|
0.75
|
3/8-24UNF-2B
|
1/1.5 t
|
76.2
|
50.8
|
25.4
|
M12*1.75
|
2/2.5/3 Klb
|
3.00
|
2.00
|
1.00
|
3/8-24UNF-2B
|
2/2.5/3/5 t
|
108
|
76.2
|
25.4
|
M18*1.5
|
4/5/7.5/10 Klb
|
4.25
|
3.00
|
1.00
|
3/4-16UNF-2B
|
7.5 t
|
139.7
|
100
|
31.8
|
M24*2
|
15 Klb
|
5.5
|
3.94
|
1.25
|
1-14UNS-2B
|
10 t
|
177.8
|
125.5
|
49.3
|
M30*2
|
20 Klb
|
7.00
|
4.94
|
1.94
|
1 1/4-12UNF-2B
|
